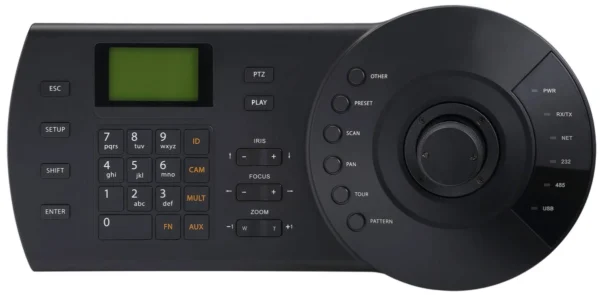

GOLIATH Steuerpult für PTZ Kameras, Netzwerk Steuerung, RJ-45, RS232, RS485, RS422, USB, LAN

Beschreibung

GOLIATH Steuerpult für PTZ Kameras, Netzwerk Steuerung

Geeignet für alle Goliath HDCVI und IP Kameras mit einer motorischen Steuerung (PT, PTZ, Motorzoom)

Technische Daten

Keyboard to Control
• Goliath High Speed Dome
• Goliath Standalone DVR
• Goliath Network High Speed Dome
• Network Video Server

Connection
• RS485, RS422, USB, RS232 & Network

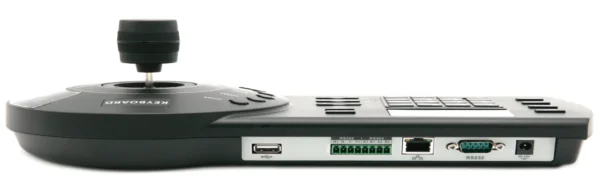

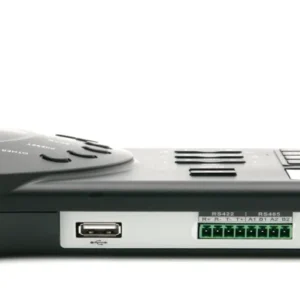

• Keyboard Connector: RJ-45, RS232, RS485, RS422, USB
• Keyboard Communication: Direct Mode, Network Mode

Direct Mode
• Interface: RS232/RS485
• DVR Protocol: DH2
• Dome Protocol: DH-SD/PELCO-D/PELCO-P/PELCO-D1/PELCO-P, etc.

Network Mode
• Interface: RJ45 DVR/Network
• Dome: IP Address/Port/Protocol

Functions

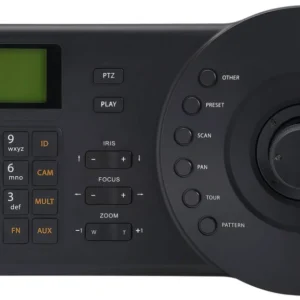

• Three Dimensional Joystick Control of PTZ Functions
• Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Auxiliary Functions
• On-Screen Menu & User Operation Procedure Tips
• Connect to SmartPSS via USB
• Keyboard Key panel: Electromechanical
• Joystick: 3-axis, vector-solving, with twisting, return to-center head
• Display: LCD, 75.2mm x 33.85mm
• Power Supply: Power adapter, input 100V-240V 50Hz/60Hz, output DC12V/1000mA
• Power Consumption: 5W
• Working Temperature: -10°C- +55°C
• Working Humidity: 10% – 90%
• Atmosphere Pressure: 86kpa-106kpa
• Dimension: 330mm x 140mm x 37.5mm (WxDxH)(height: 100mm including joystick)
